Description
Please see below the specifications.
Modifications:
Neuf Bars
| General information | |
|---|---|

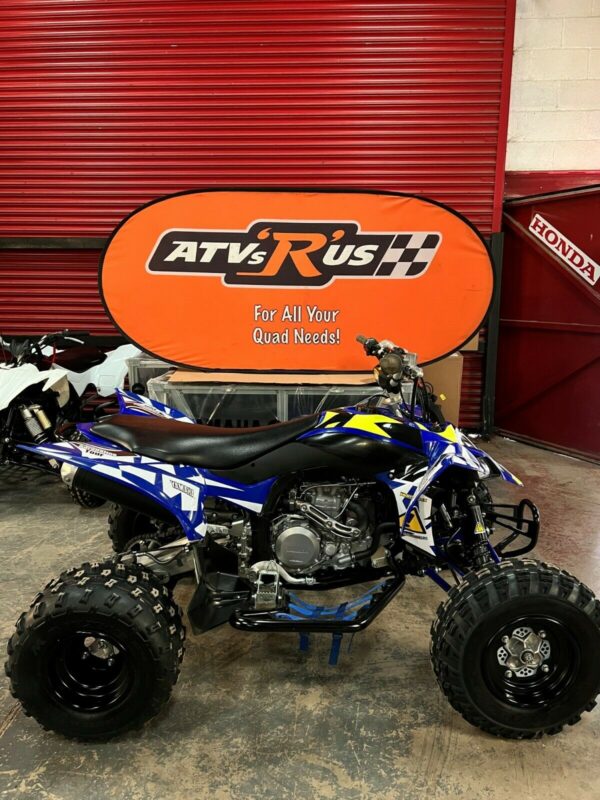

| Model: | Yamaha YFZ450R |
| Year: | 2019 |
| Category: | ATV |
| Rating: | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
| Displacement: | 449.0 ccm (27.40 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Engine details: | Titanium valves |
| Compression: | 11.8:1 |
| Bore x stroke: | 95.0 x 63.4 mm (3.7 x 2.5 inches) |
| Valves per cylinder: | 5 |
| Fuel system: | Injection. Yamaha Fuel Injection (YFI), 42mm |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | TCI |
| Lubrication system: | Dry sump |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
| Transmission type, final drive: |
Chain |
| Clutch: | Wet multiplate assist-and-slipper clutch |
|
Chassis, suspension, brakes and wheels |
|
| Frame type: | Aluminum and steel |
| Front suspension: | Independent double wishbone, threaded preload adjustable dual-rate coil-over springs, 3-way adjustable damper, 250 mm wheel travel |
| Rear suspension: | Cast aluminium swingarm, threaded preload adjustable coil-over springs, 3-way adjustable damper, 280 mm wheel travel |
| Front tire: | 21/7-10 |
| Rear tire: | 20/10-9 |
| Front brakes: | Double disc. Hydraulic. Two-piston calipers. |
| Rear brakes: | Single disc. Two-piston calipers. |
| Wheels: | Maxxi tires |
|
Physical measures and capacities |
|
| Weight incl. oil, gas, etc: | 184.0 kg (405.7 pounds) |
| Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height: | 1065 mm (41.9 inches) |
| Overall length: | 1795 mm (70.7 inches) |
| Overall width: | 1240 mm (48.8 inches) |
| Ground clearance: | 115 mm (4.5 inches) |
| Wheelbase: | 1270 mm (50.0 inches) |
| Fuel capacity: | 10.00 litres (2.64 US gallons) |
|
Other specifications |
|
| Color options: | Blue |
| Starter: | Electric |
