Description

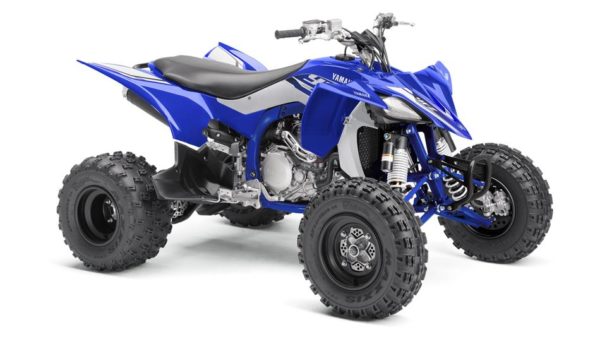

Serious racers will tell you that the Yamaha YFZ450R SE is the clear favourite with winning riders. Its sharp-handling chassis and ultra-responsive 450cc engine have made it today’s number one racing ATV. Nothing else comes close.
Taking ATV racing to the next level
A race-bred assist and slipper clutch gives more precise control over corner entry speed for quicker lap times – while the race-bred engine delivers superfast throttle response and hard-hitting high rpm power for holeshot-winning performance.
Sharp-designed bodywork gives the rider space to shift the bodyweight during cornering or hard acceleration. And the lightweight piggyback shocks make for razor-sharp handling!
At a glance
- Lightweight chassis
- Special graphics & quick release fasteners
- 5-valve 4-stroke single cylinder engine
- 32-bit fuel injection for instant response
- Dual front discs with wave-type rear
- Remote reservoir 3-way adjustable front shocks
- Lightweight weldless hybrid aluminium frame
- Cast aluminium swingarm with piggyback rear shock
- Class-leading power-to-weight ratio
- Quick-release fasteners for easy bodywork removal
Specifications
Engine
- Engine type
- Single cylinder, liquid-cooled, 4-stroke, DOHC, 5-valves
- Displacement
- 449cc
- Bore x stroke
- 95.0 mm x 63.4 mm
- Compression ratio
- 11.8 : 1
- Lubrication system
- Dry sump
- Fuel system
- Fuel Injection 42 mm EHS with ISC
- Ignition system
- TCI
- Starter system
- Electric
- Transmission system
- 5-speed, manual slipper clutch
- Drive system
- 2WD
- Final transmission
- Sealed O-ring chain, eccentric adjustment
Chassis
- Front suspension system
- Independent double wishbone, , 250 mm stroke, threaded preload adjustable dual-rate coil-over springs
- Rear suspension system
- Cast aluminium swingarm, , threaded preload adjustable coil-over springs, 280 mm stroke
- Front brake
- Dual ventilated disc with hydraulic twin piston callipers
- Rear brake
- Wave-type ventilated disc with twin piston callipers
- Front tyres
- AT21x7R10
- Rear tyres
- AT20x10R9
Dimensions
- Overall length
- 1,795 mm
- Overall width
- 1,240 mm
- Overall height
- 1,065 mm
- Seat height
- 810 mm
- Wheelbase
- 1,270 mm
- Minimum ground clearance
- 115 mm
- Wet weight (including full oil and fuel tank)
- 184kg
- Min. turning radius
- Fuel tank capacity
- 10.0litres
- Oil tank capacity
